Product Description

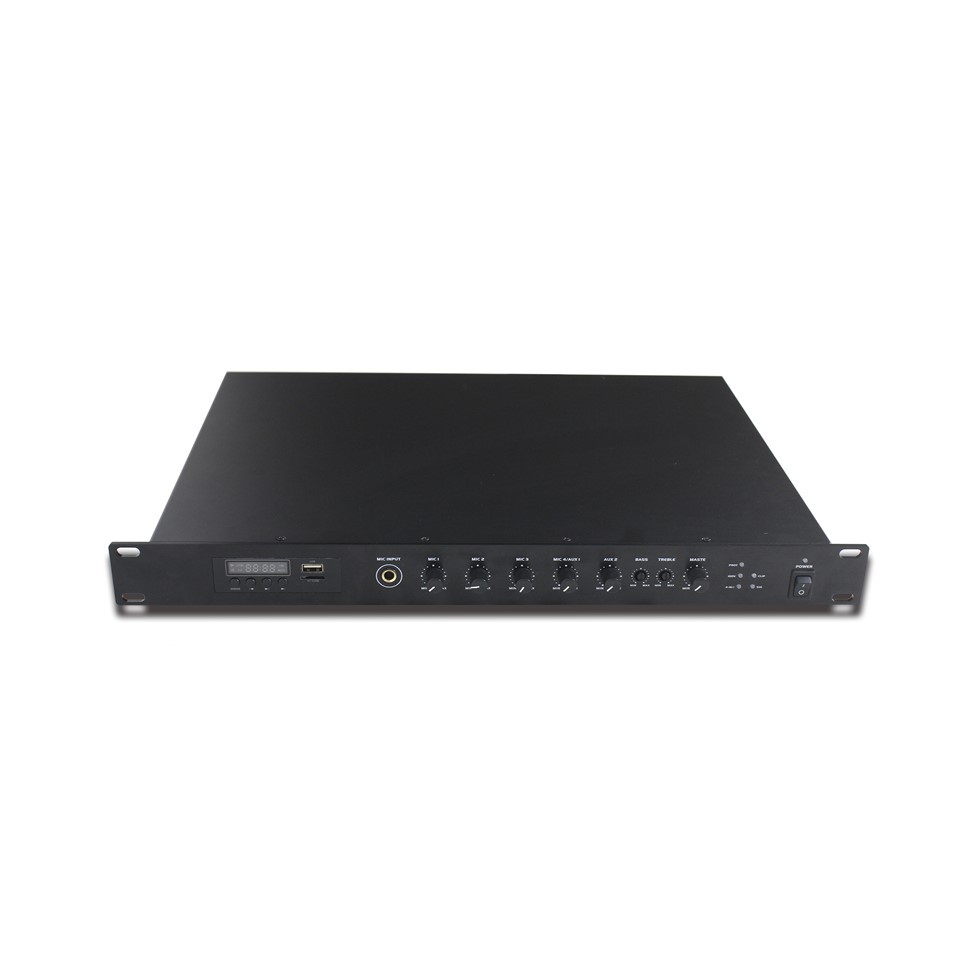

The NS-P035 redefines versatility as an IP Based Amplifier, offering a balanced blend of analog flexibility and digital connectivity. With a strong 350 watt amplifier core, this unit serves as both a traditional PA mixer amplifier and a modern IP Audio Amplifier, capable of handling everything from daily background music to urgent public address messages across schools, logistics centers, and places of worship.
Designed for scalable deployment, the IP Based Amplifier model NS-P035 features SIP compatibility, allowing it to join existing VoIP ecosystems without additional gateways. Its rear-panel 100V/4–16Ω toggle, comprehensive input matrix, and real-time display ensure intuitive operation, while thermal and short-circuit protections guarantee long-term reliability in demanding environments.
Key Features
- Advanced IP Based Amplifier with native SIP support for seamless network integration
- Powerful 350 watt amplifier suitable for medium to large coverage zones
- Four mic inputs (with phantom power) and dual AUX channels for rich audio layering
- Functions as both a conventional audio amplifier and a smart network amplifier
- Onboard MP3/Bluetooth/FM module with LED screen for standalone media playback
- Priority logic (EMC > MIC1 > others) ensures critical messages always cut through
Specifications
|
Model Number |
NS-P035 |
|
Rated Power Output |
350W |
|
Output |
100V or 4-16 ohm switchable |
|
Frequency Response |
80-16000Hz, +/-3dB |
|
THD |
Less than 0.5%at 1kHz (1/3 Rated Power) |
|
S/N Ratio |
Better than 80dB |
|
Tone Controls |
BASS:100 Hz(+/-10dB), TREBLE:10k Hz(+/-10dB) |
|
Controls |
All input gain,1 treble,1 bass,1 mute, and power switch |
|
Cooling |
Internal24VDC fan, extensive heat sinking |
|
Indicators |
Power indicator LED, PROT,100V,4-16 OHM, CLIP, SIG |
|
Protection |
Current limiter, short circuit and thermal protection circuits |
|
Power Consumption |
470W |
|
Power Requirements |
220-240V AC,50/60 Hz;24VDC for TD version |
|
Dimensions |
44.5(H)×483(W)×330(D)mm |
|
Built-in Dimensions |
1U rack 19 inch |
|
Net Weight |
5.7kg |
|
Finish |
Panel: Aluminum plate, black Case: steel plate, black |
