Product Description

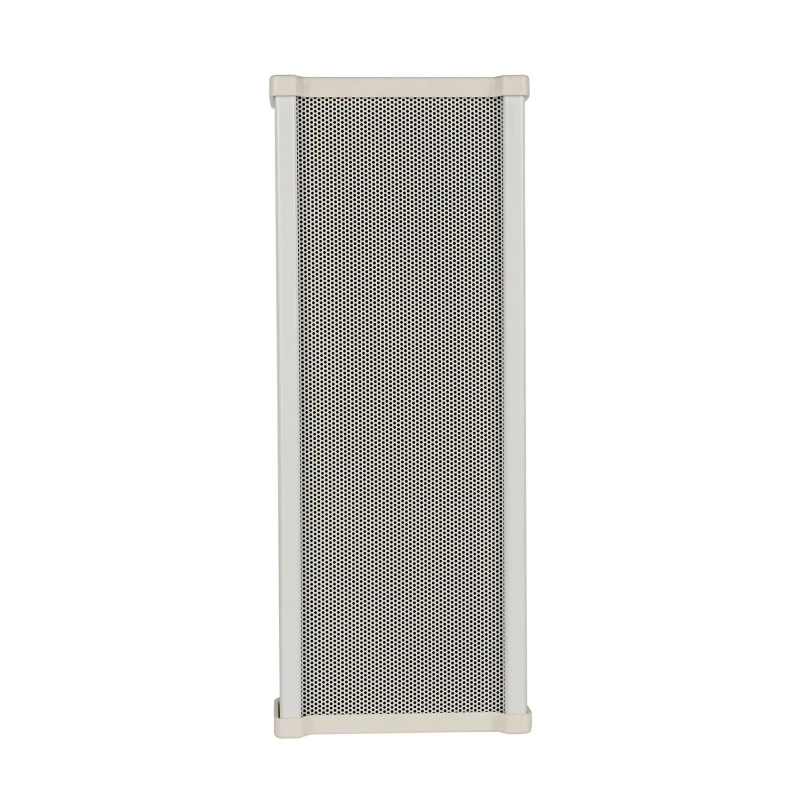

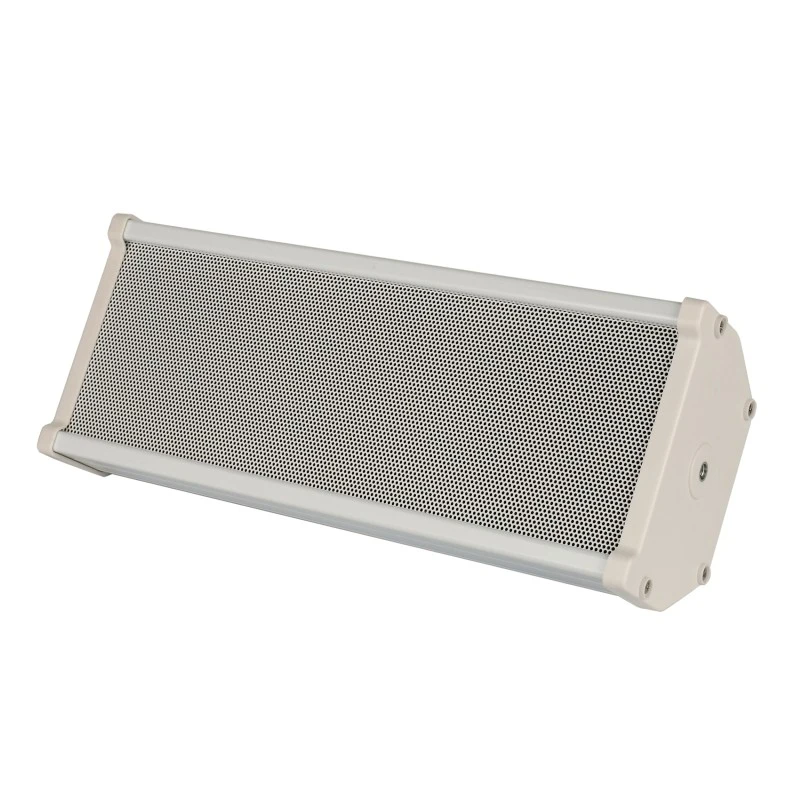

The NS-L060 is a high-power 60W IP speaker designed for community and large-scale audio applications. These reliable community column speakers provide exceptional sound coverage and clarity, making them ideal for public spaces and outdoor events. With SIP protocol support, they integrate easily into ip pa system and sip speaker networks, offering flexible and scalable solutions. The dual SIP accounts and RTP Multicast capabilities ensure efficient communication and broadcasting.

Built with a sturdy aluminum alloy enclosure and ABS end-caps, these community column speakers are built to withstand challenging environments. They deliver full-range Hi-Fi audio with support for multiple codecs, ensuring high-quality playback. As part of a comprehensive column pa systems setup, they enhance the overall audio experience in venues like parks, stadiums, and campuses.

Complying with CE and FCC standards, the NS-L060 ensures reliable quality and safety performance. We offer OEM and ODM customization, prompt technical assistance, and sample availability. These community column speakers deliver strong, long-lasting sound performance, making them an ideal solution for professional audio installations.

Key Features

60W power output for wide-area sound coverage.
Full-range Hi-Fi speaker with high signal-to-noise ratio.
SIP compatible, dual accounts, Direct IP Call, and RTP Multicast.
Durable aluminum alloy enclosure with ABS end-caps.
CE and FCC certified, supports customization and samples.

Specifications

Networking
Interface	10/100 Base-TX, RJ45
Supported Protocols	SIP, HTTP, HTTPS, IPv4, TLS, RTSP, RTP, RTCP, DHCP, DNS, NTP, TCP, UDP, IGMP, ICMP, ARP
Security	Password protection, IP address filtering, Digest authentication, User access log
Audio
Rated Power	60W
MAX SPL	109dB
Frequency Response	20Hz ~ 20kHz
Total Harmonic Distortion	≤10%
Signal-to-Noise Ratio	≥90dB
Decoding	OPUS 48KHz, MP3 44.1KHz, G.722-ADPCM 16KHz, G.711-PCMU 8KHz, G.711-PCMA 8KHz, G726 8KHz, GSM 8KHz, LPCM-16bit-Stereo/Mono 44.1kHz
VoIP
Protocol	SIP (compatible with VoIP, SIP devices such as IPPBX, IP Phone)
Functions	2 SIP Accounts SIP Direct IP Call, RTP Multicast
Codecs	OPUS, G722, G711U, G711A
General
Dimensions	155 × 105 × 905mm
Power Supply	AC 220V / 50Hz
Operating Temperature	-20℃ ~ +80℃
Enclosure Material	White Aluminum Alloy + ABS Plastic End-caps
Installation	Wall Mounted
Weight	10.2 kg

Installation & Maintenance

The NS-L060 features a wall-mounted column design, allowing for quick installation and stable placement. Its lightweight yet strong aluminum housing simplifies handling while maintaining durability.

Installation height: 2.5–3.5 meters recommended for optimal coverage.
Connection: RJ45 network cable for power and signal (PoE optional upon customization).
Maintenance: Easy access front grille and replaceable internal components ensure long service life.
Routine cleaning and occasional firmware updates can keep performance at its best.

FAQ

Q: What is the power output of the NS-L060 speaker and what areas is it suitable for?

A: The NS-L060 delivers 60W of power, making it ideal for wide-area sound coverage in public spaces such as parks, stadiums, campuses, and outdoor events where clear and reliable audio broadcasting is essential.

Q: Can the NS-L060 be used in multicast broadcasting applications?

A: Yes, it supports RTP Multicast, making it suitable for one-to-many audio broadcasting scenarios such as public announcements or background music across multiple zones.

Q: Is the NS-L060 suitable for outdoor use and what are its durability features?

A: Yes, it is built with a sturdy aluminum alloy enclosure and ABS end-caps, offering protection against harsh environmental conditions. It also operates within a wide temperature range of -20℃ to +80℃.
